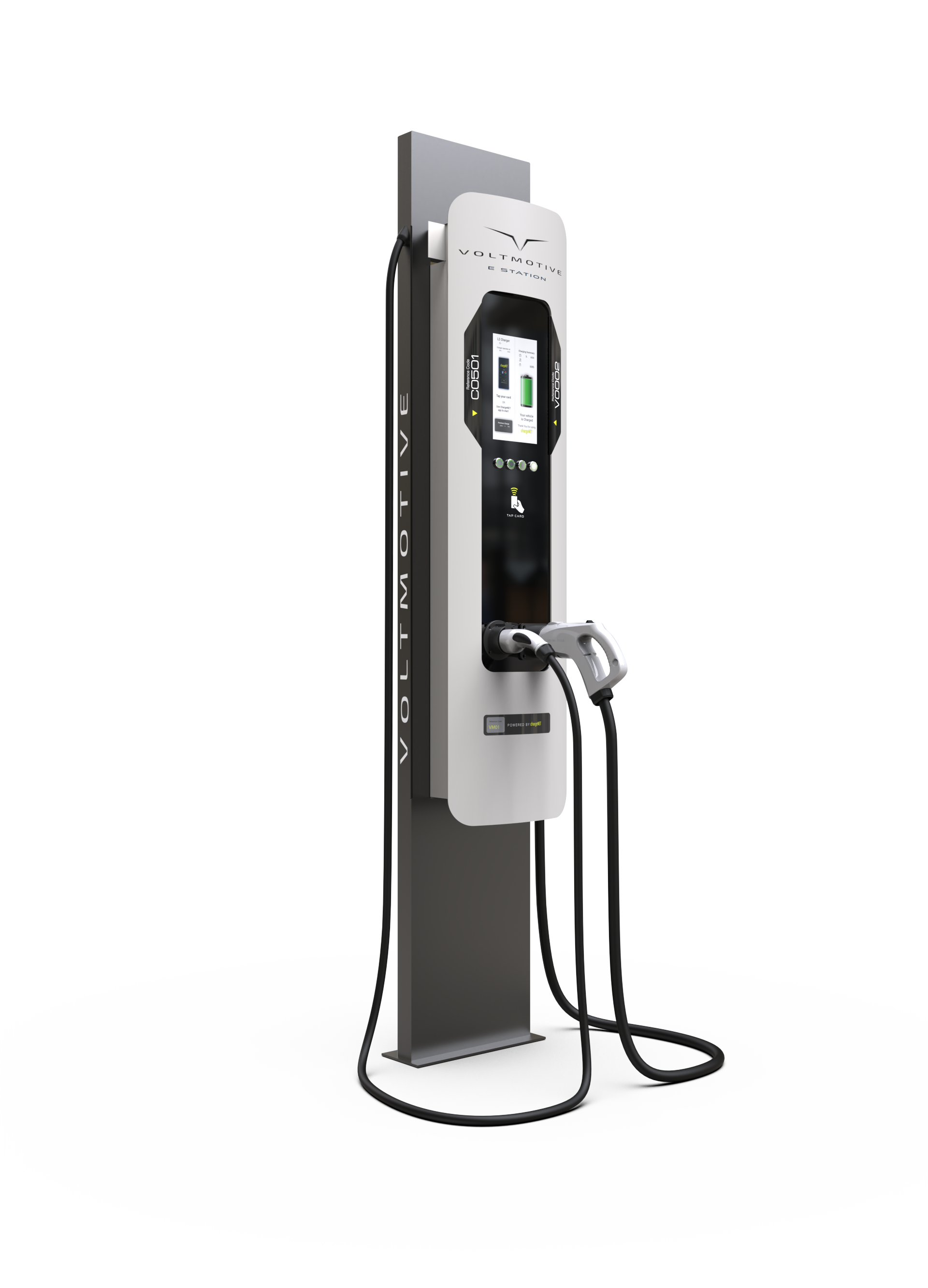

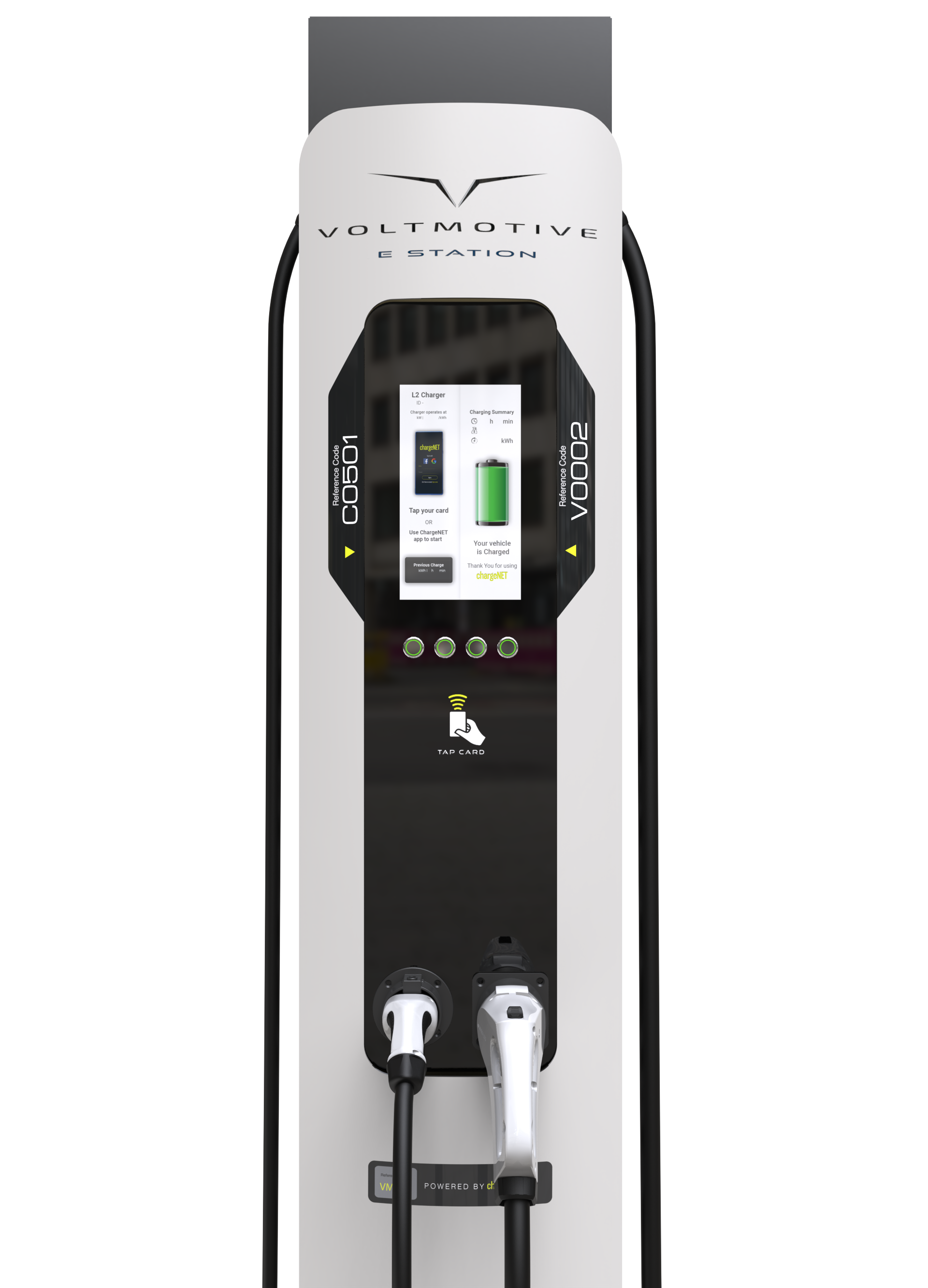

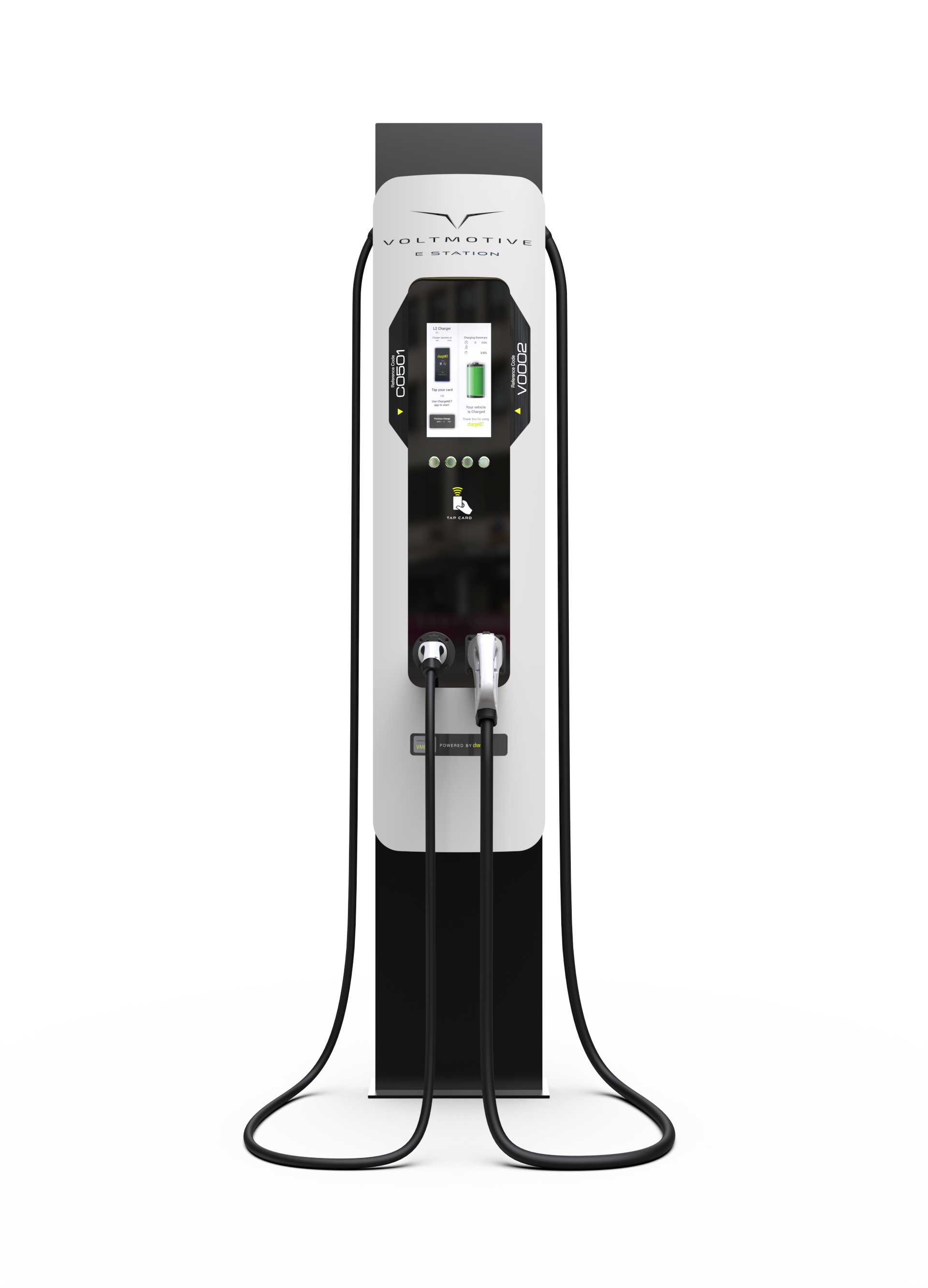

Low Voltage charger

Designed and developed focusing especially on the electric three wheelers and bikes, this dual port charger can
be easily installed in residence and commercial spaces. It can also serve as an L2 charger for other EV’s

• • Input Connection: 3P+N+PE
  • Input Voltage: 400 VAC +/- 10%
  • Input Frequency: 50Hz +/- 5%
  • Input Current: 30A
  • Output Voltage: 40-135 VDC
  • Output Current: 200A (upto
  • Charging Power: 20kW max
  • Output Protection: Under voltage, over voltage, over current
  • Earthing System: TT
  • Over current Protection: MCB
  • LCD Display: 10.1* LCD Last transaction details.
  • Charging time. Energy. Power, Current, Fault
  • Authentication: RFID Card
  • STOP Button: Stop charging (Quick press)
  • Restart charger (Press for 5 seconds and release)
  • Standard: 4G/ WiFi / Ethernet
  • Temperature: 0°C to +55°C
  • Humidity: 30% – 95% RH, non-condensing
  • Altitude: 2,000m (Max)
  • Charging Cable Length: 4m
  • Charging Cable Length: 4m
  • Protection Level: IP 54
  • Mounting: Floor Standing
  • Weight: 120kg
  • Dimension (W H D): 24 x 73 x 12 inch
  • Warranty: 1 Year
  • Connector Ports: GB/T and Level 2 Type 1
  • Cable hanging: With Charger
  • Output Power: 10kW to 20kW on FC | 3.3kW to 6.6kW on Level 2
  • 6.6k/l on Level 2
  • Ports: Dual Port
  • Charging Start : Mobile app & Card tap
  • OTA Updates: Yes
  • Live monitoring: YES
  • Remote Support: YES
  • After sales Service: YES
